Grouping Questions and Repeating Groups

KoBoToolbox supports grouping questions when designing a survey form. Users may need to group questions due to various reasons:

  • Make the questionnaire systematic: You could group your questions that have special linkage or attributes as Identifier, Section A, Section I, etc.

  • Display a set of questions per page: Grouped questions can be displayed on separate pages (or screens) during data collection.

  • Skip a group of questions: Rather than adding the same skip logic to each individual question, group the questions and add the skip logic to the group instead.

  • Create a roster: Repeat grouped questions for household surveys, etc.

Grouping a set of questions

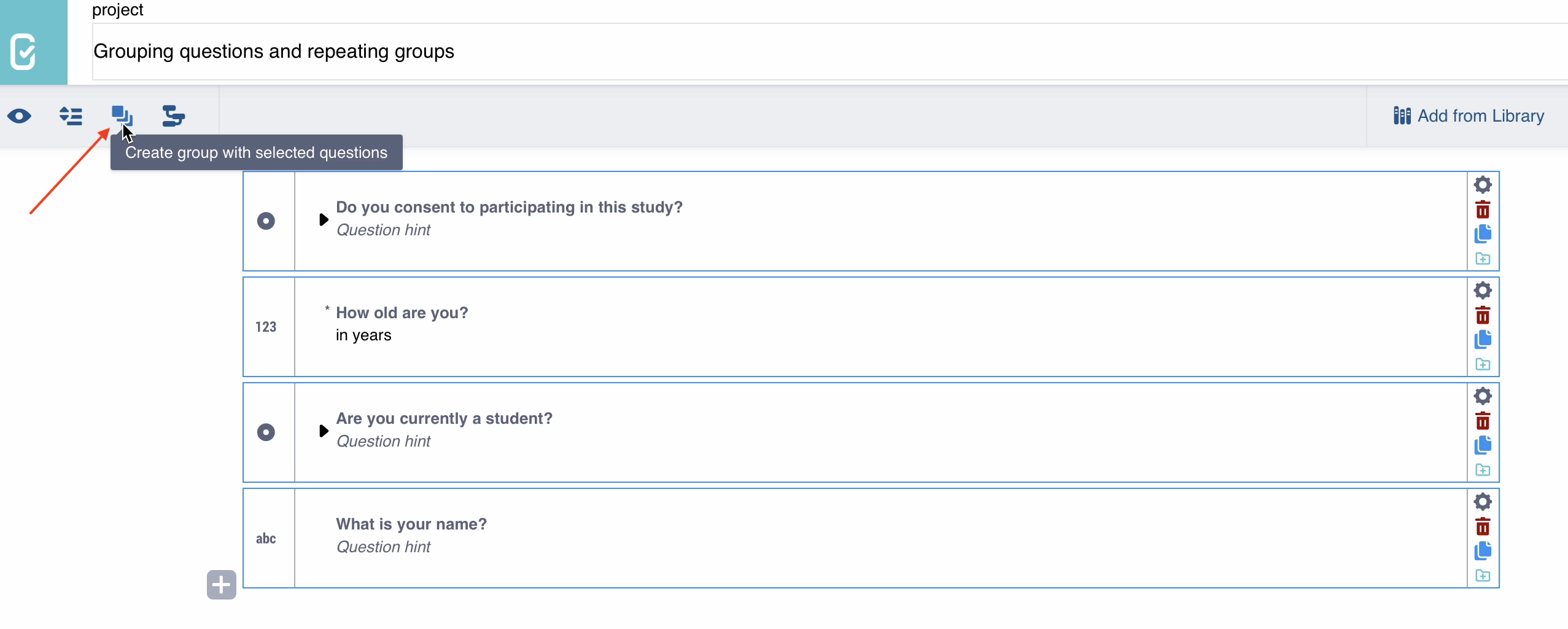

Draft a set of questions that you would wish to group together. Then press the CTRL Key (It may vary based on the OS used. The instruction here is based on the Windows OS) and select all the questions (with the help of your mouse) that you wish to group. You should see the questions getting highlighted to blue as shown in the image below:


Then press Create group with selected questions (marked under the red box) as shown in the image above. You should now be able to see your new group as shown in the image below. It should be slightly different (enclosed within a shaded box) then the normal question you generally see.


You can also change the group label. Here I have changed the group label to Demographic Characteristics as shown in the image below:


Alternative way of creating a group

Draft a question. Select the question that you have drafted. It highlights to blue. At the same time the icon (marked under the red box as shown in the image below) for Create group with selected questions also gets activated.


Now click the Create group with selected questions (icon) and you should be able to see the question has been grouped (despite the fact that there is only one question at the moment).


Add or modify questions as outlined below.

Adding questions within a group

Hover your mouse (anywhere inside the group) where you wish to add a new question. You should see a plus sign (+) under the question. In the image below, I have hovered my mouse over the last question (Hobby). Press the plus sign that is inside the group (marked with a red box) to add a new question.

If you press the other plus sign (+) which is located outside the group, you will be adding a question outside the group.


You should now be able to see Add Question as shown in the image below:


Removing questions from a group

Hover your mouse on top of the question you wish to delete. Press the trash (bin) icon. At this stage, the color of the question box you wish to delete changes to red. You should also see a text with Delete Question on top of the question that you wish to delete.


Once you click the delete button, you should get a confirmation dialogue box as shown in the image below. Click OK.


Re-ordering a question within a group

If you are not satisfied with the ordering of the questions within the group, you could re-order them by simply selecting a question (that is within a group) and dragging them to an appropriate place (either up or down as needed).


If needed, you could also drag them outside the group (to extract a question from a group).

Displaying the grouped questions on the same screen

If you wish to display the grouped questions on the same screen, press the gear like settings icon that has been marked under the red boxed as shown in the image below. Then select Show all questions in this group on the same screen as shown in the image below:


Alternatively, you could also group a set of questions and display them on the same screen through XLSForm (if you are comfortable with XLSForm) using the field-list option under the appearance column:

survey

type name label appearance
begin_group DC Demographic Characteristics field-list
text Name Name
integer Age Age
select_one Sex Sex Sex
text Hobby Hobby
end_group

choices

list_name name label
Sex 1 Male
Sex 2 Female

Ungrouping a set of questions

If you no longer need a group of questions, you could ungroup or delete the grouped questions. For this simply click the Delete button from the group header.


You should then get a dialogue box confirming if you wish to split apart the group or delete everything. Press UNGROUP.


The group disappears but the questions will remain.


If the DELETE EVERYTHING button is pressed, the group and all its questions will be deleted.

Skipping a group of questions

To skip a group of questions, you should have at least one controlling question on top of the grouped question. Press the settings icon from the grouped question as shown in the image below:


Then select Skip Logic and configure as shown in the image below:


Alternatively, you could also do this in XLSForm:

survey

type name label relevant
select_one Q1 Q1 Q1. Are the any eligible respondents in the household?
begin_group DC Details of eligible respondents ${Q1} = '1'
text Name Name
integer Age Age
select_one Sex Sex Sex
text Hobby Hobby
end_group

choices

list_name name label
Q1 1 Yes
Q1 2 No
Sex 1 Male
Sex 2 Female

Creating a roster (repeating group of questions)

Questions within a roster can be answered multiple times. For example, in a household survey you might want to ask the name, age, gender and education status of every household member.

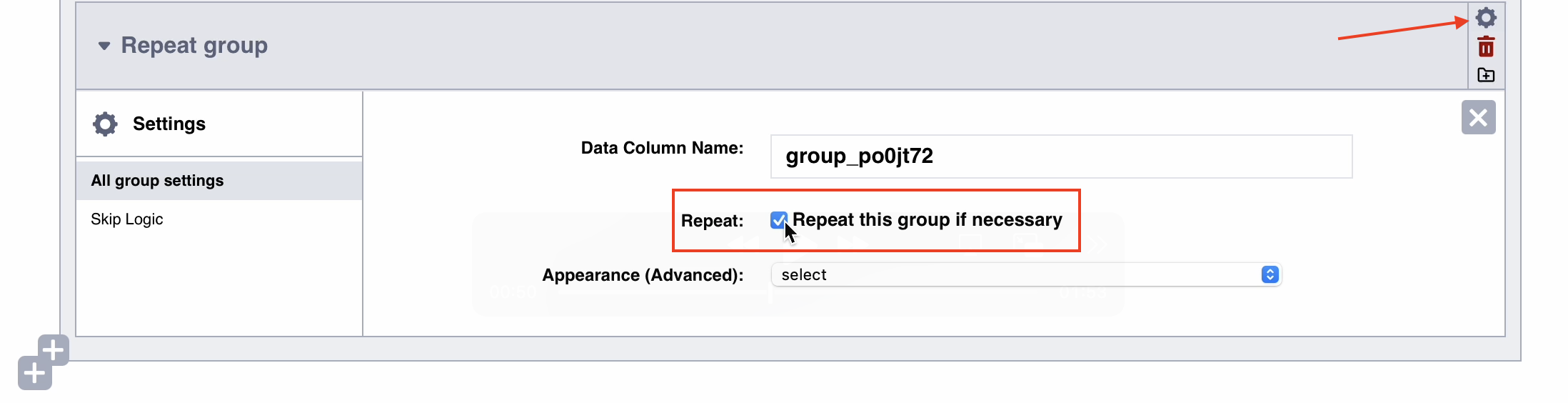

Create a group of questions following the instructions that has already been outlined above. Then under the group settings, select Repeat this group if necessary (marked under the red box as shown in the image below).


During an interview the enumerators will be able to enter the details to these grouped questions as many times as required.

The resulting data structure from a roster is different from the data you normally see with other variables or groups. When downloading your data, you will see a different sheet for each roster (i.e. the number of additional sheets corresponds with the number of repeating groups that you have within your survey form).

Controlling the loop of repetition in a roster

Sometimes your survey may demand you to control the repeating of questions in a roster with a value of a certain variable. In this case, you should modify your survey in XLSForm as the form-builder does not currently support this feature.

survey

type name label repeat_count
integer Q1 Total number of family members living in this household
begin_repeat DC Details of eligible respondents ${Q1}
text Name Name
integer Age Age
select_one Sex Sex Sex
text Hobby Hobby
end_repeat

choices

list_name name label
Sex 1 Male
Sex 2 Female

Instead of having an indefinite number of repeat group iterations, this method will control the number of iterations based on the value in the repeat_count column.

Using information to a roster from a preceding roster

While working with grouping questions and repeating groups, sometimes you might need to include certain details to a roster from a preceding roster. Designing such survey form is possible in KoBoToolbox using an indexed-repeat() function in the XLSForm. For example, you could use the name that has been recorded in a roster (previously) to link with other repeating group questions (like education etc.):

survey

type name label calculation repeat_count
begin_repeat DC Demographic Characteristics
text Name Name
integer Age Age
select_one Sex Sex Sex
text Hobby Hobby
end_repeat
calculate family_count count(${DC})
note family_count_note Number of family members: ${family_count}
begin_repeat education Education information ${family_count}
calculate name_individual indexed-repeat(${Name}, ${DC}, position(..))
select_one edu_level edu_level What is ${name_individual}'s level of education
end_repeat

choices

list_name name label
Sex 1 Male
Sex 2 Female
edu_level 1 Primary
edu_level 2 Secondary
edu_level 3 Higher Secondary & Above

Screen seen while collecting data in Enketo:


Nested Repeat (roster within a roster)

KoBoToolbox also supports nested repeat form design. Here you are able to add a roster within a roster (i.e. a repeat group question within a repeat group question).

Design a roster (with the group name Demographic Characteristics) and then place another roster (with the group name List of Hobbies) within a roster (Demographic Characteristics) by following the steps outlined above under Creating a roster (repeating group of questions). You should then have a nested repeat form as shown in the image below:


Alternatively, you could also do this in XLSForm:

survey

type name label calculation repeat_count
begin_repeat DC Demographic Characteristics
text Name Name
integer Age Age
select_one Sex Sex Sex
integer Hobby How many hobbies does ${name} have?
calculate name_individual indexed-repeat(${Name}, ${DC}, position(..))
begin_repeat LH List of Hobbies ${Hobby}
text Hobbies Hobbies of ${name_individual}
end_repeat
end_repeat

choices

list_name name label
Sex 1 Male
Sex 2 Female

Screen seen while collecting data in Enketo:


You are able to collect data using nested repeats in both Enketo and the Collect Android app. If you are using Collect, please ensure that you are using the latest version as earlier versions may not support this.
