Adding Cascading Select Questions

Cascading select questions are sets of questions whose options depend on the response to a previous question. For example, your form may first ask the region where a respondent is from, and then in the next question list only the towns and villages of that region.

Adding sets of cascading select questions to your form can be done by importing them to a draft form in the form-builder or adding them manually to an XLS Form and then uploading that file.

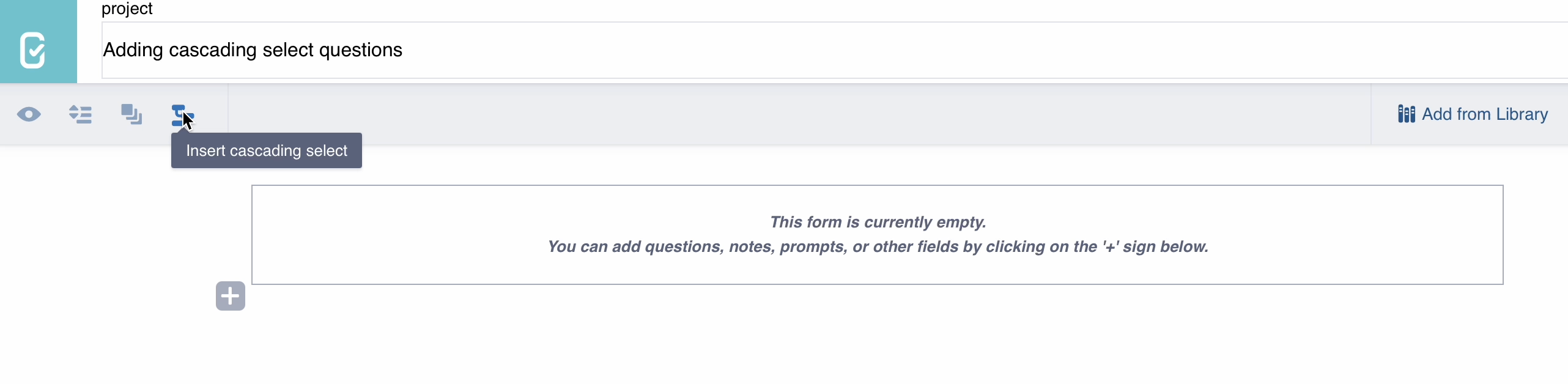

Importing cascading question sets in the form-builder

  1. Open Excel or another spreadsheet program and follow this template as an example to create your template of questions and responses to be added.


  2. Select and copy the whole cascading table template, then paste it into the Import Cascade, then click Done to import it. (If there were any mistakes in the formatting you will not be able to import the set - correct any formatting mistakes and make sure you followed the template instructions.)


  3. You can move the imported questions anywhere in your form and change the labels of both the question and responses and delete responses.

  4. If you want to add additional responses to the cascading list just delete the imported questions and import a new list from your spreadsheet.

  5. You can preview the form to test the cascading questions.


Adding cascading question sets in XLSForm (Option 1)

(If you have an existing form, download it as XLS to your computer and open it in Excel or another spreadsheet program).

  1. In the survey sheet, add new lines for the questions you’d like to add, following this template.

survey

type name label choice_filter
select_one states Q1 Which state?
select_one counties Q2 Which county? state=${Q1}
select_ine cities Q3 Which city? state=${Q1} and county=${Q2}
  1. In the same survey sheet, add a column called choice_filter and add the XLSForm reference to each of the parent items.

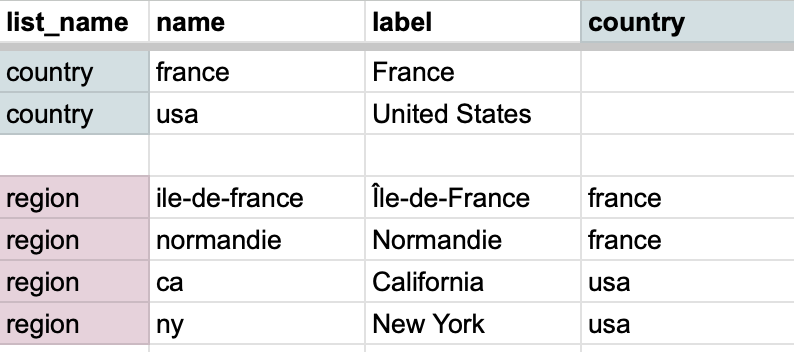

  2. In the choices sheet of the file, add all the options you would like to appear in the different questions, e.g. the lists of states, counties, and cities (follow the above template).

choices

list_name name label state county
states texas Texas
states washington Washington
counties king King washington
counties pierce Pierce washington
counties king King texas
counties cameron Cameron texas
cities dumont Dumont texas king
cities finney Finney texas king
cities brownsville Brownsville texas cameron
cities harlingen Harlingen texas cameron
cities seattle Seattle washington king
cities redmond Redmond washington king
cities tacoma Tacoma washington pierce
cities puyallup Puyallup washington pierce
  1. Note that for each of the child elements you need to add a column to specify its parent. For example, King and Pierce counties are in Washington state, so you need to write ‘washington’ into the ‘state’ column for these two counties.

  2. Save your form. In KoBoToolbox open the main menu and click on Projects. From here you can upload and deploy your form directly, including the newly added cascading select questions.

Adding cascading question sets in XLSForm (Option 2)

Sometimes a researcher wishes to limit the choices of one question based on the responses from a previous question. For this one could do the following:

survey

type name label choice_filter
select_multiple brand Q1 Q1. Which brand comes to mind comes to mind when you think about life insurance?
select_multiple brand Q2 Q2. Which branch would you choose for your future life insurance purchase? selected(${Q1}, name)

choices

list_name name label
brand 1 Bajaj Allianz Life
brand 2 HDFC Life
brand 3 Kotak Life
brand 4 LIC
brand 5 Max Life
brand 6 Aegon
brand 7 SBI Life
brand 8 Tata AIA Life
brand 9 ICICI Prudential
brand 10 PNB Met Life

Preview the data collecting form in Enketo:


As seen above, you will be able to restrict the choices in the second question based on the choices you entered in the first question.
