Selecting options from an image

Last updated: 21 Mar 2026

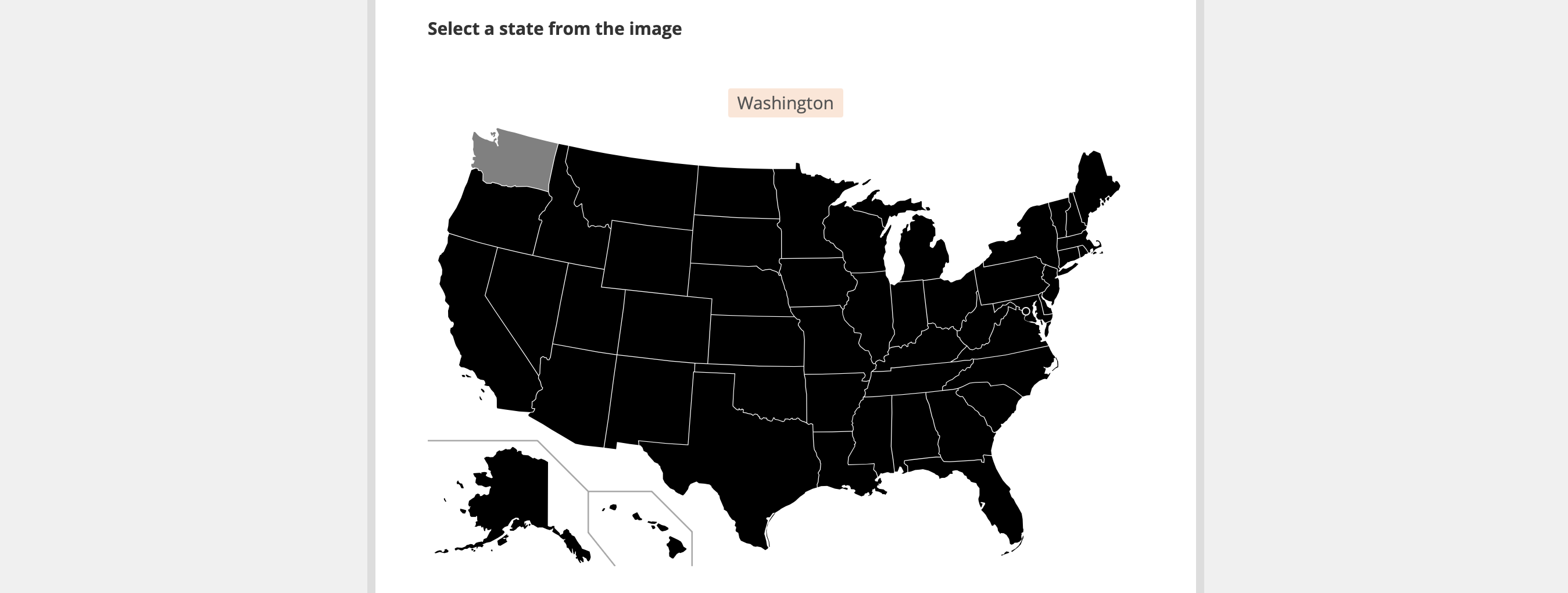

Selecting options from an image allows respondents to tap or click directly on specific areas of an SVG file instead of choosing from a text list. This feature works in both Enketo web forms and the KoboCollect Android app.

You might use this feature to:

• Select a location from an image of a room or facility

• Select a body part from a diagram of the human body

• Select damaged areas from a photo of a building after a disaster

This article explains how to create a selectable SVG image and configure your XLSForm so respondents can choose options directly from the image.

Creating your selectable image

To create an image with selectable regions, you must use an SVG (Scalable Vector Graphics) file.

To learn more about SVG files, see SVG documentation. We recommend using Inkscape, a free and open source vector graphics editor, for creating and editing SVG files.

Each selectable area in the image must include an id attribute. These id values must exactly match the corresponding name values in the choices sheet of your XLSForm, so they should follow the same naming conventions.

To create your selectable image file:

1. Create or edit a .svg file.

2. Add id attributes to each element you want to be selectable.

3. Save the file.

Note: In Enketo web forms, only SVG <path> elements are supported as selectable areas. Other SVG shapes, such as rectangles or circles, may not work as expected. KoboCollect supports additional SVG primitives.

Setting up your XLSForm

To allow respondents to select options from your image in XLSForm:

1. In the survey worksheet, add a select_one or select_multiple question.

2. Add an appearance column and enter image-map.

3. Add an image column and enter the exact name of the SVG file.

4. In the choices worksheet, add the list of choices.

   • The name column must exactly match the id values in your SVG file.

survey sheet

type	name	label	appearance	image
select_one body	body_part	Which body part hurts the most?	image-map	body.svg
survey

choices sheet

list_name	name	label
body	leg	Leg
body	arm	Arm
body	head	Head
choices

Uploading the SVG file to KoboToolbox

After creating your SVG file and referencing it in your XLSForm, you will need to upload it to your project.

To upload media files:

1. Log in to your KoboToolbox account.

2. Open your project.

3. Go to SETTINGS > Media.

4. Upload the SVG file. Ensure the file name matches exactly what is written in the image column of your XLSForm.

5. Deploy or redeploy your form to apply the changes.

To learn more about uploading media files, see Uploading media files to a project.
